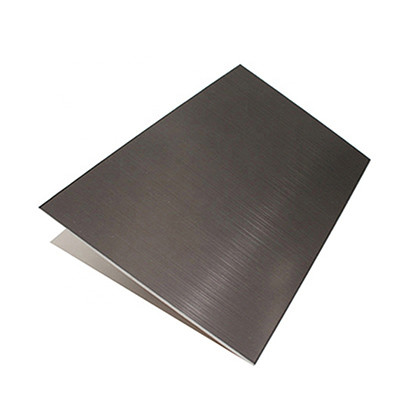

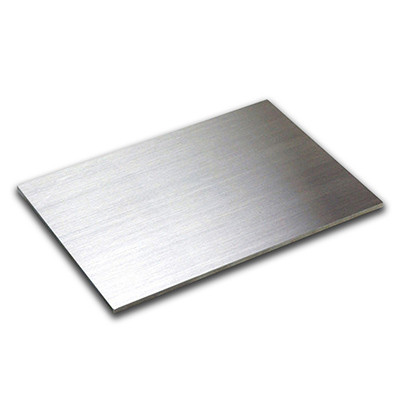

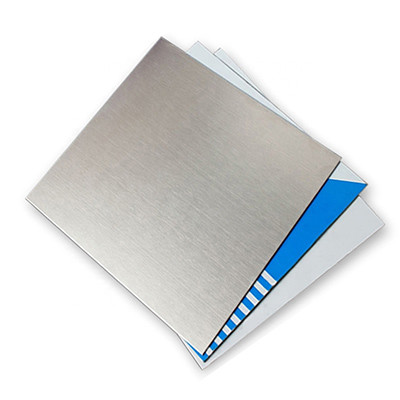

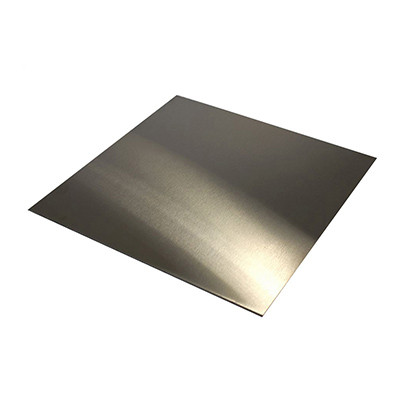

304L Stainless Steel Plate
It is used in field open-air machines in chemical, coal and petroleum industries that require high resistance to grain boundary corrosion, heat-resistant parts of building materials and parts with difficult heat treatment.
0086-15311659629
Alice@bj-export.com
◉ Product Parameters
◉ Factory Display
◉ FAQ
◉ Product Recommendation

Product Parameters



304L Stainless steel sheet manufacturer

304L stainless steel, also known as ultra-low carbon stainless steel, is a kind of universal stainless steel material, widely used in the production of equipment and parts requiring good comprehensive properties (corrosion resistance and formability).

304L Stainless steel sheet Price in China ,Manufacturer of 304L Stainless Steel sheet

304L stainless steel is a kind of universal stainless steel material.
304L stainless steel grade:
The old standard JB/T 4237-1992 corresponds to 00Cr19Ni10
New standard GB/T 20878-2007 Stainless steel and heat resistant steel grades and chemical composition
And GB 24511 2009 stainless steel plates and strips for pressure bearing equipment
The above corresponds to 022Cr19Ni10, which contains about 0.03% carbon
Uniform digital code S30403 is different from S30408 of 304

This is the most cost effective grade of steel. So the 304L Stainless Steel Sheet Price is lower compared to other grades of stainless steels and all metallic products in general. There are different versions of the material with low carbon and high carbon content.  The low carbon version, 304L sheets are very good for welding applications as they have less carbide precipitation and less localized corrosion.

Standard Specification Of 304L Plate

Thickness4mm-100mm
Width1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Length2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Surface2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sand blast, Brush, etching, etc
FinishHot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)
Form Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats,
Blank (Circle), Ring (Flange) etc.

304L stainless steel composition content.

GradeCMnSiPSCrMoNiN
304LMin.
Max.		≤0.03 ≤2.0≤1.00≤0.045≤0.0318.0～20.0/9.0～12.0

Yield strength (N/mm2) ≥205
Tensile strength ≥520
Elongation rate (%) ≥40
Hardness HB ≤187 HRB≤90 HV ≤200
The density of 7.93 g · cm – 3
Specific heat c (20 ℃) 0.502 j. (g · c) – 1
Thermal conductivity λ/W(m·℃)-1 (at the following temperatures /℃)
20 100 500
12.1 16.3 21.4
Linear expansion coefficient α/(10-6/ ° C) (at / ° C between the following temperatures)
20 ~ 200 20 ~ 300 20 ~ 400
16.0 16.8 17.5 18.1
Resistivity 0.73 Ω·mm2·m-1
Melting point 1398 ~ 1420℃

304L Characteristic machining technology

1D — The surface has discontinuous granular shape, also known as fog surface.
Processing technology: hot rolling + annealing shot peening pickling + cold rolling + annealing pickling.
2D – A slightly silvery white colour.
Processing technology: hot rolling + annealing shot peening pickling + cold rolling + annealing pickling.
2B — Silver white with better gloss and flatness than a 2D surface.
Processing technology: hot rolling + annealing shot peening pickling + cold rolling + annealing pickling + quenching and tempering rolling.
Ba – Excellent surface gloss, high reflectivity, like a mirror surface.
Processing technology: hot rolling + annealing shot peening pickling + cold rolling + annealing pickling + surface polishing + quenching and tempering rolling.
No.3 — Good gloss, coarse grain surface.
Processing technology: polishing and tempering rolling for 2D or 2B with 100~120 abrasive materials (JIS R6002).
No.4 — Good gloss, fine lines on the surface.
Processing process: polishing and tempering rolling for 2D or 2B with 150~180 abrasive materials (JIS R6002).
HL — Silver grey with hair streaks.
Processing technology: 2D products or 2B products with appropriate granularity of abrasive materials for polishing the surface is a continuous abrasive grain.
MIRRO — Specular.
Processing technology: 2D products or 2B products with appropriate granularity of the grinding material grinding and polishing to the mirror effect.

Chemical Properties of Frequently-used Stainless Steel Material Grade

UNSASTMENJISC%Mn%P%S%Si%Cr%Ni%Mo%
S201002011.4372SUS201≤0.155.5-7.5≤0.06≤0.03≤1.0016.0-18.03.5-5.5-
S202002021.4373SUS202≤0.157.5-10.0≤0.06≤0.03≤1.0017.0-19.04.0-6.0-
S301003011.4319SUS301≤0.15≤2.00≤0.045≤0.03≤1.0016.0-18.06.0-8.0-
S304003041.4301SUS304≤0.08≤2.00≤0.045≤0.03≤0.7518.0-20.08.0-10.5-
S30403304L1.4306SUS304L≤0.03≤2.00≤0.045≤0.03≤0.7518.0-20.08.0-12.0-
S30908309S1.4833SUS309S≤0.08≤2.00≤0.045≤0.03≤0.7522.0-24.012.0-15.0-
S31008310S1.4845SUS310S≤0.08≤2.00≤0.045≤0.03≤1.5024.0-26.019.0-22.0-
S316003161.4401SUS316≤0.08≤2.00≤0.045≤0.03≤0.7516.0-18.010.0-14.02.0-3.0
S31603316L1.4404SUS316L≤0.03≤2.00≤0.045≤0.03≤0.7516.0-18.010.0-14.02.0-3.0
S31703317L1.4438SUS317L≤0.03≤2.00≤0.045≤0.03≤0.7518.0-20.011.0-15.03.0-4.0
S321003211.4541SUS321≤0.08≤2.00≤0.045≤0.03≤0.7517.0-19.09.0-12.0-
S347003471.4550SUS347≤0.08≤2.00≤0.045≤0.03≤0.7517.0-19.09.0-13.0-
S405004051.4002SUS405≤0.08≤1.00≤0.04≤0.03≤1.0011.5-14.5≤0.60-
S409004091.4512SUS409≤0.08≤1.00≤0.045≤0.03≤1.0010.5-11.75≤0.50-
S430004301.4016SUS430≤0.12≤1.00≤0.040≤0.03≤0.7516.0-18.0≤0.60-
S434004341.4113SUS434≤0.12≤1.00≤0.040≤0.03≤1.0016.0-18.0--
S444004441.4521SUS444L≤0.025≤1.00≤0.045≤0.03≤1.0017.5-19.5≤1.00-
S40300403-SUS403≤0.155.5-7.5≤0.04≤0.03≤0.5011.5-13.0≤0.60-
S4100004101.40006SUS410≤0.15≤1.00≤0.035≤0.03≤1.0011.5-13.5≤0.60≤1.00
S420004201.4021SUS420J10.16~0.25≤1.00≤0.04≤0.03≤1.0012.0-14.0≤0.75≤1.00
S440A440A1.4028SUS440A0.60~0.75≤1.00≤0.04≤0.03≤1.0016.0-18.0-≤0.75
S32750SAD25071.4410
≤0.03≤1.2≤0.035≤0.02≤0.8024.0-26.06.0-8.03.0-5.0
S31803SAF22051.4462
≤0.03≤2.0≤0.03≤0.02≤1.0021.0-23.04.0-6.52.5-3.5
N08904904L1.4539
≤0.0.3≤2.0≤0.035≤0.03≤1.0018.0-20.023.0-25.03.0-4.0

Stainless steel plate inventory packaging




Factory Display

  • 645f88ceb28016b71deb44d0eca6ae91346ff4f633046-YV9trp.jpg
  • 4ba06389467ca90624596b987abe434be8635cba188343-TdLEpR 拷贝.jpg
  • 8.jpg
  • 1.jpg
  • 12.jpg
  • 工厂 (2).png
  • 工厂 (2).jpeg
  • 工厂车间 (1).jpeg
  • 工厂车间 (12).jpeg

FAQ

Q: Are you trading company or manufacturer ?

A: We are professional manufacturer with 20 years' experience, and our company also is a very professional a trade company for steel products.We can also provide a wide range of steel products.

Q: Will you delivery the goods on time?

A: Yes,we promise to deliver on time,indemnity clause in contract terms will work if we couldn't.

Q: Do you provide samples ? Is it free or extra ?

A: The samples are free,you just need to pay the courier freight.

Q: How could you guarantee your products?

A: Products are manufactured by certified workshops, inspected by professional inspector.

Q: Do you accept the third party inspection?

A: Yes, absolutely we accept.

Q: How do we trust your company?

A: We specialist in steel business for many years, authenticated by SGS,welcome to visit our factory.

Q: What's your advantages?

A: Our own production lines make the good prices and high quality possible and seasoned workers serve you 7*24 hours.

Q: Can you produce the products according to my own drawings?

A:Yes,we can produce the products according to your drawings that will be most satisfy you.

Q: What is your Payment?

A: 100% T/T advance , Western Union (For Small Order)
B: 30% T/T and balance 70% before the shipment
C: 100% Irrevocable LC at sight (For Big Order)

Q: How long is the Delivery time?

A: 7~20 working days after confirming the payment.
If the order is urgently, we will push our workshop finish in advance.
